Mfc Part No: FMIT23AK3X
Top Tube (Effective, C-C): 657mm Chainstay: 420-435mm Head Angle: 64.5 Deg Seat Angle: 73 Deg Head Tube: 133mm BB Drop: 49mm Dropout: 12x148mm Boost Color: Black Flash |
sku:
DD2134-B
ean: |
- The second generation AKA is packed full of class defining features including long/slack geometry and a 64.5º head angle equating to 66º on the trail with sag factored in
- Designed to be used with a 140mm fork for 27.5’’ wheels or 120mm for 29’’ wheels, this versatile bike is built to shred everything in its path

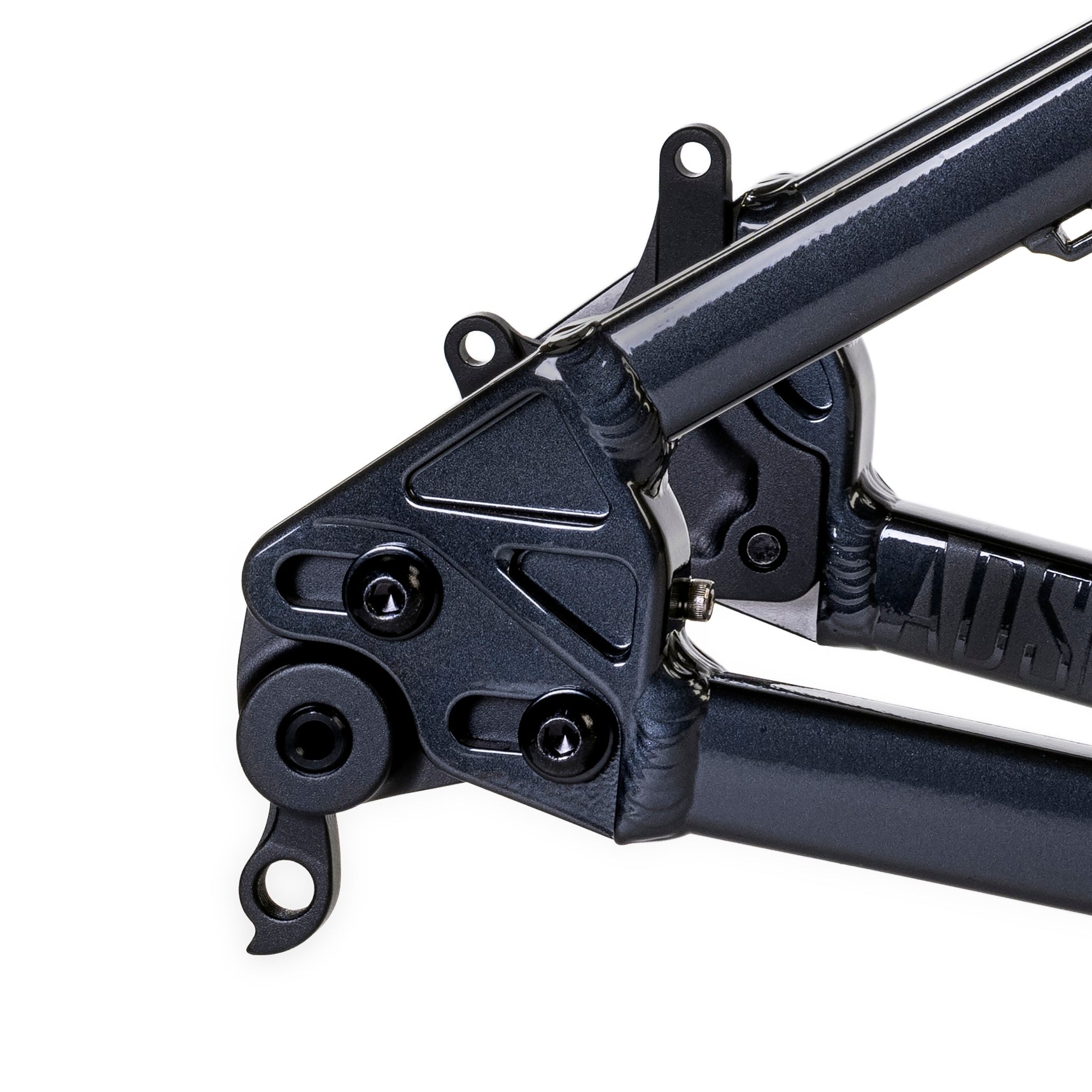

- Retains the adjustable dropouts but uses a new ADS system with 15mm of adjustment and hidden tensioner. Perfect for either geared or Singlespeed use
- Big volume tire capacity - 2.6’’ max, letting the rider explore the limits of grip and traction
- Triple bottle cage mount inside front triangle for adjustable bottle placement or extra storage for longer adventures. Another bottle cage mount is located under the downtube

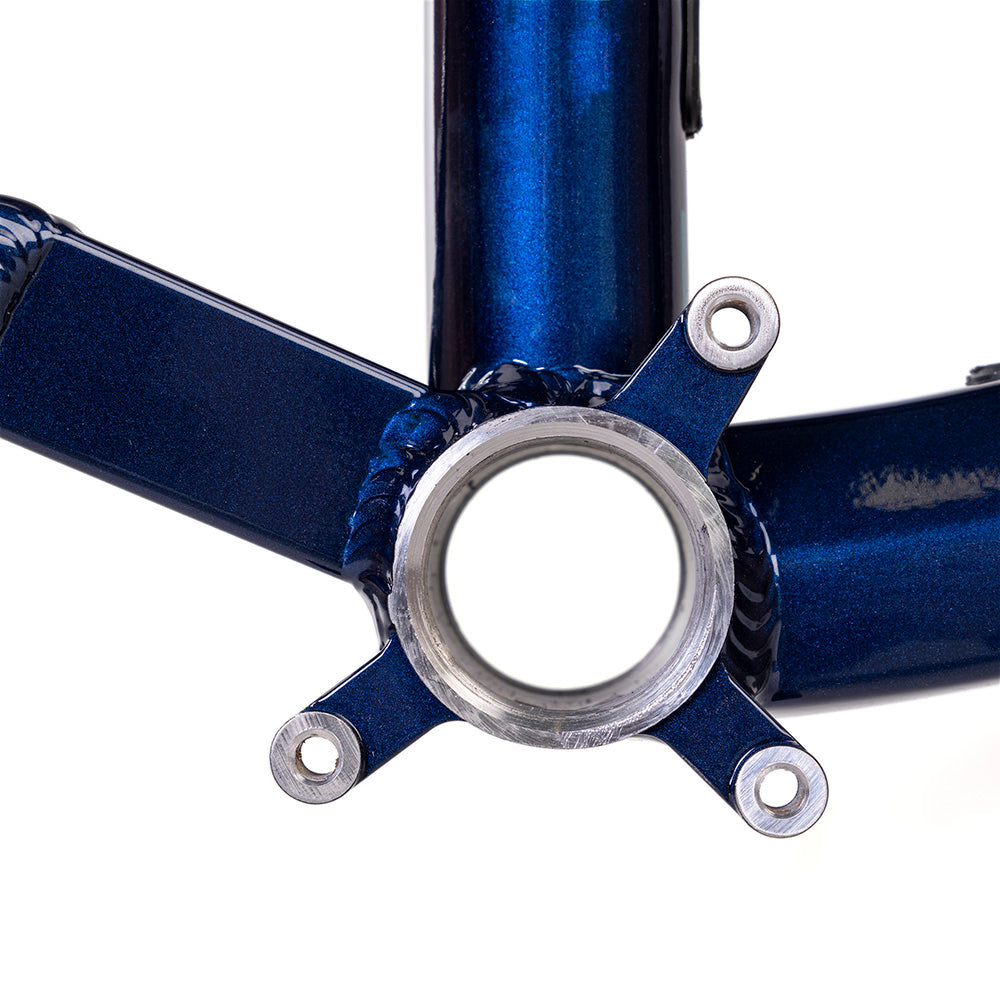

- Threaded BB with ISCG-05 tabs, Boost 148mm dropouts and internal dropper post routing
- Headset compatibility ZS44 upper, ZS56 lower
- Seatpost 30.9mm, seat clamp 34.9mm
